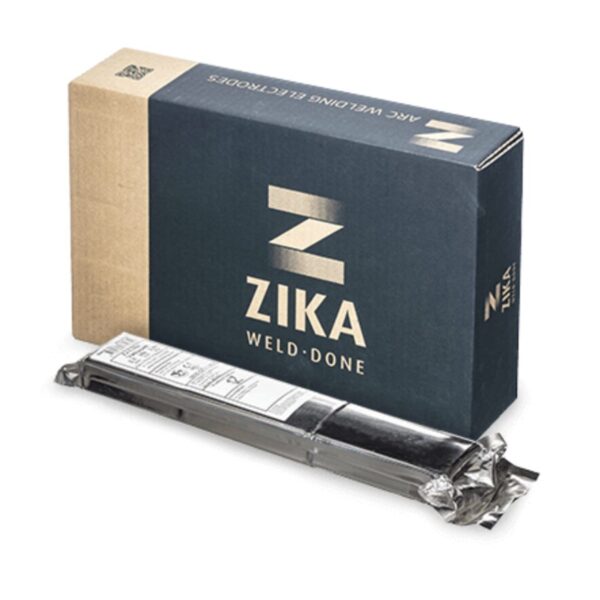

312S 3.2mm 2.5kg STAINLESS STEEL ELECTRODES ZIKA
$172.50 incl. GST
ZIKA 312S ELECTRODES 3.25 X 300mm 2.5kg
- Description
- Specifications
Description
DESCRIPTION AND APPLICATION
Rutile-basic coated all position electrode for joining dissimilar steels and surfacing applications.
Suitable for welding difficult to weld steels such as: Mn-steel, Ni-steel, armor plates and two different kinds of steel.
Excellent weldability on both AC and DC.
SPECIFICATIONS:
AWS/ASME SFA A5.4 : E 312-16
EN ISO 3581-A-E 29 9 R 12 mod
WELDING POSITIONS
RE-DRYING
300°C/2H
3.25 x 350mm
2.5kg packs
6 packs per carton
| TYPICAL ALL WELD METAL COMPOSITION [WT%] | |||||
| C | Mn | Si | Cr | Ni | |
| 0.11 | 0.90 | 1.10 | 27.6 | 9.50 | |
| TYPICAL ALL WELD METAL MECHANICAL PROPERTIES | |||||
| Rp 0.2 [MPa] | Rm [MPa] | A5 [%] | Impact [ISO-V] | ||
| 500 | 800 | 24 | 50 J @ 20°C |
