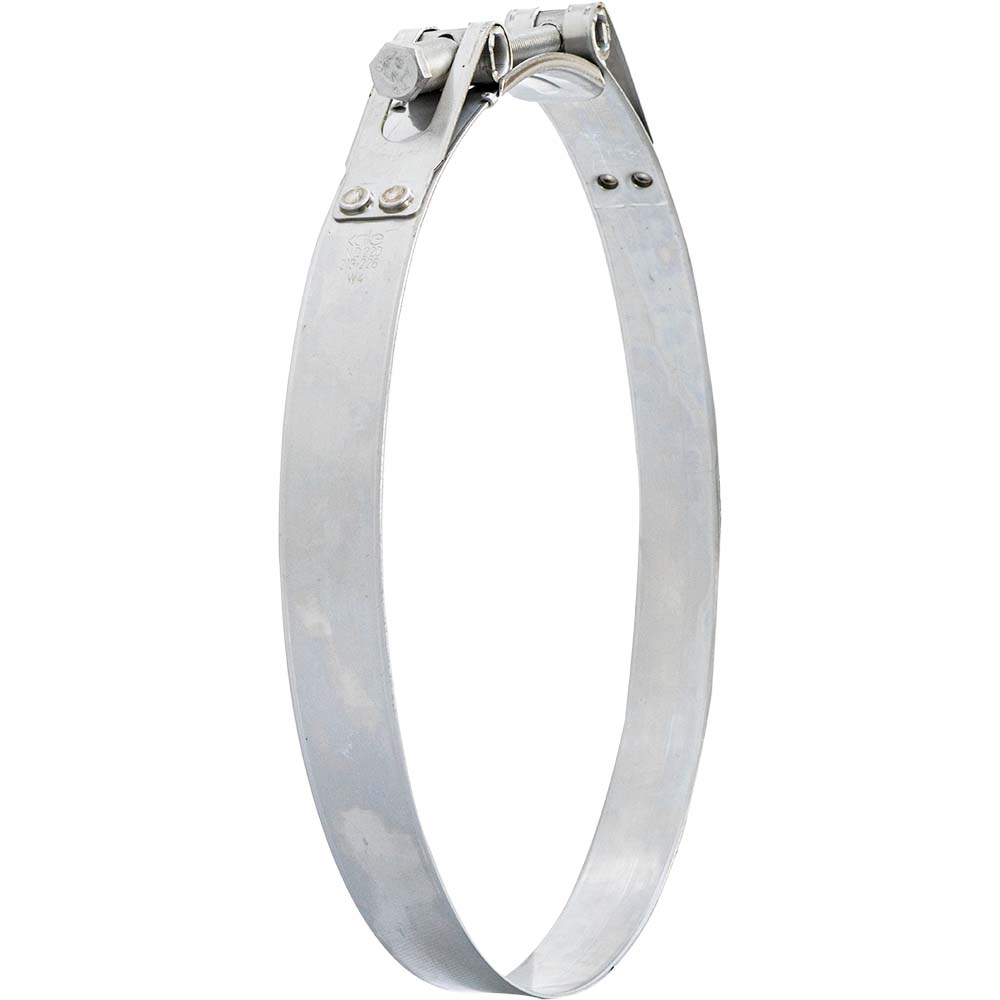

Kale HD25 130-140mm W1 TOX (ea)

Description

HD25130140W1T | Kale HD25 130-140mm W1 TOX (ea) Innovatively designed and meticulously engineered Kale Heavy Duty T-Bolt clamps have achieved new standards in performance and reliability Kale HD T-Bolt clamps are manufactured utilising TOX®-Clinching joints. A cold forming press technique that is more than 70%stronger than welding and superior to tab style mechanicallocks. Produced in Europe to DIN 3017-3 standards Kale HD T-Boltclamps are suitable for high shore hardness or reinforcedhoses. Additional design features include: • No welding and no contact corrosion points • Hollow ‘D’ shape trunnions to reduce tensile force on thebolt and clinched joint • A profiled bridge with extended tabs for secureattachment to the band without welding • W1 steel bolts are Class 8.8 and feature an integratedspacer in place of a separate bush • Rolled band edges which are designed to protect damage tothe hose or wall fabric • A high clamping force with low free torque value. Specification • Band With: 25mm • Hex: 13mm • Diameter Range: 130-140mm • Tightening Torque: 20Nm Materials • Band: Carbon Steel • Bridge: Carbon Steel • Bolt: ISO 898-1 Class 8.8* • Bush: – • Trunnion: Carbon Steel* • Corrosion Resistance acc. to ISO 9227: Min. 72 hours *Zinc Plated Available in 2 materials (W1 and W4) in sizes ranging from17-19mm through to 239-252 mm typical applications includesuction and pump hoses across a wide range of • Industries • Agriculture • Automotive • Marine • Mining • Plumbing • OEMs.
